WhatsApp Setup

Channels Channels

FRENZY.BOT includes a one-click WhatsApp integration powered by WAHA (WhatsApp HTTP API). Once enabled, your AI assistant can receive and respond to WhatsApp messages automatically — with lead capture, handoff support, and conversation tracking.

Prerequisites

  • WhatsApp channel enabled in Channels
  • A WhatsApp-capable phone number
  • WhatsApp service enabled on your server (handled automatically during setup)

Step-by-step setup

Step 1: Add the WhatsApp channel

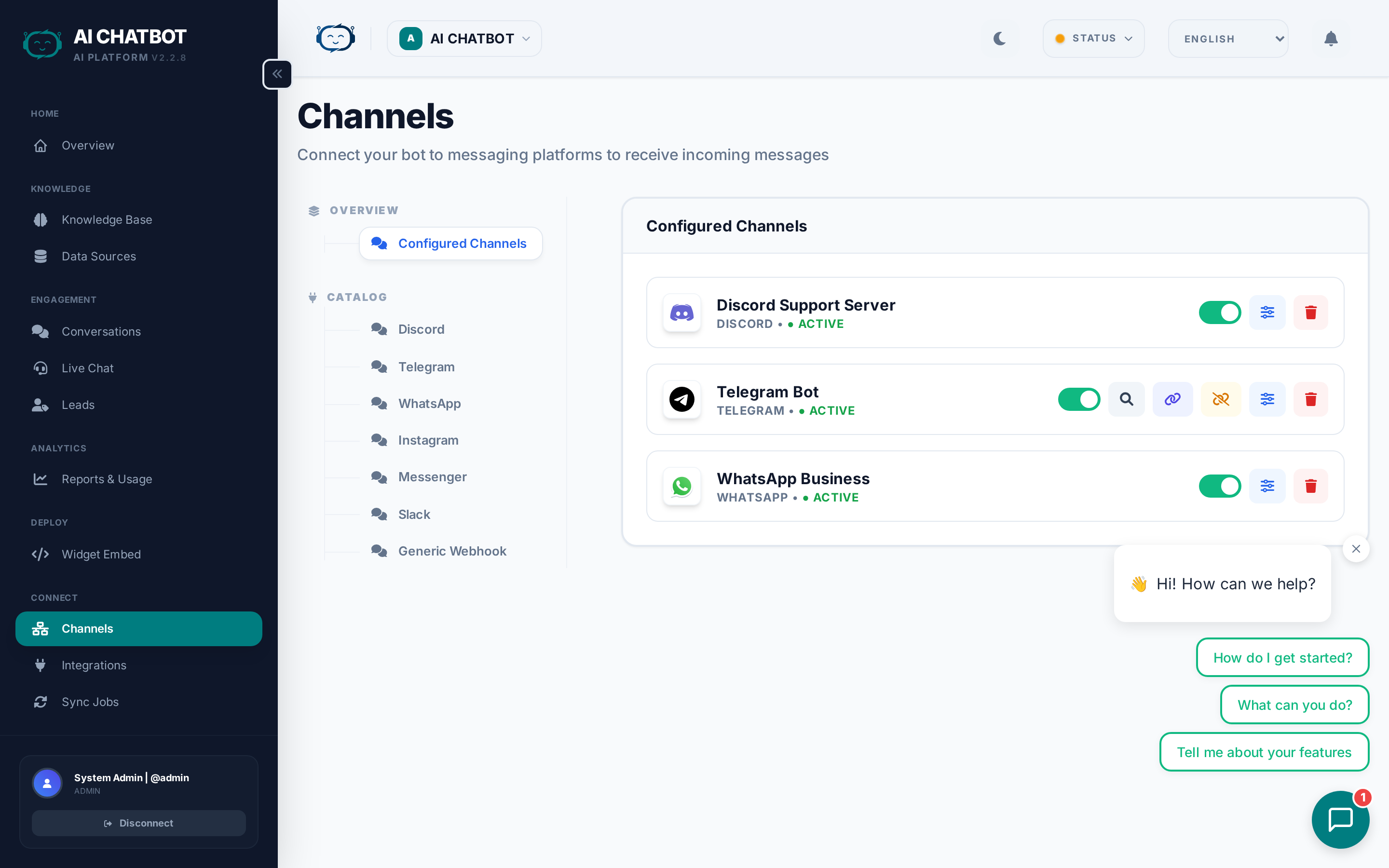

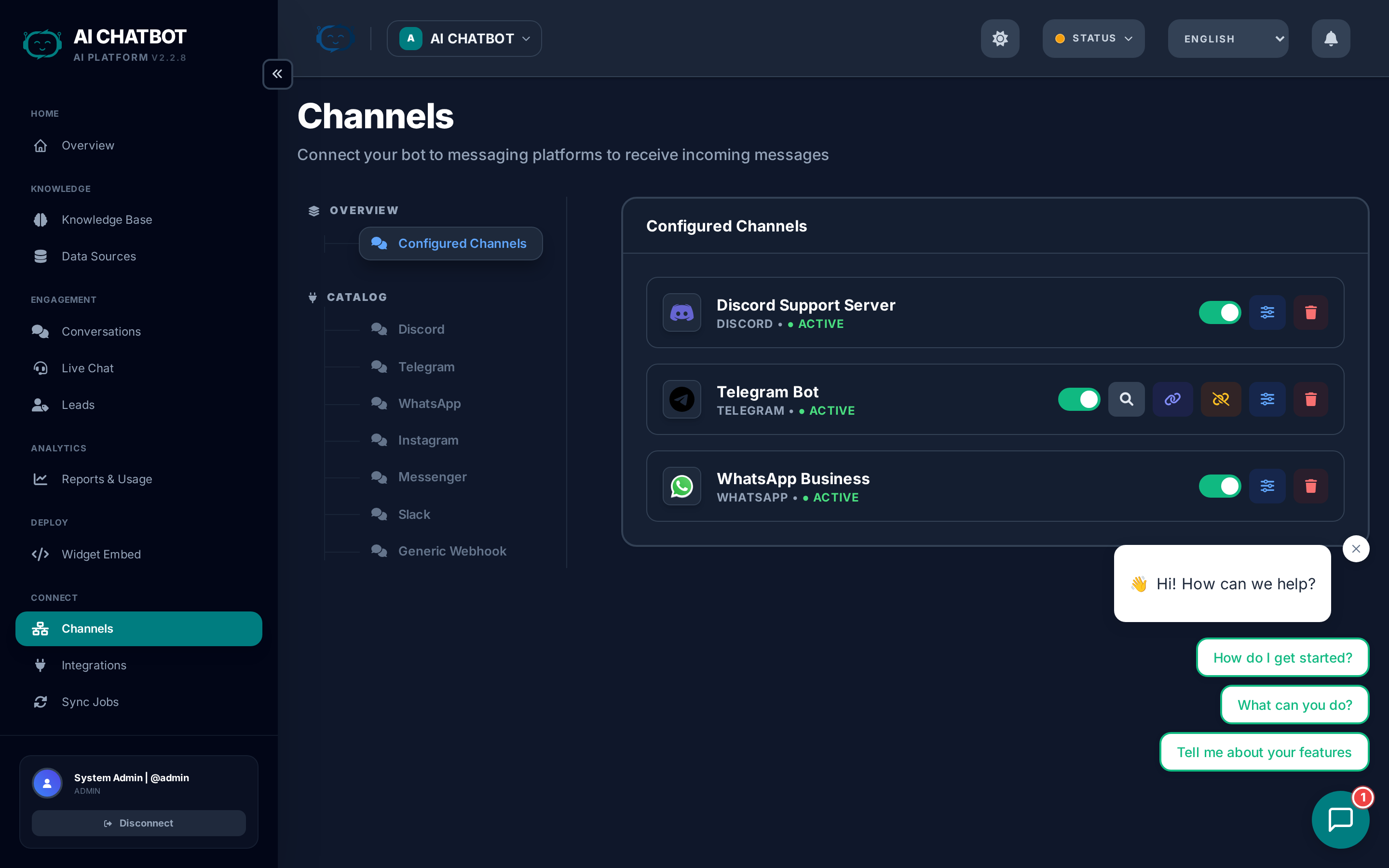

  1. Go to Channels in the dashboard sidebar.
  2. In the Catalog section (left navigation), click WhatsApp.
  3. Toggle the channel Active.

Automatic installation

The WhatsApp service is pre-installed and ready to go when your server is provisioned. No additional setup is needed beyond activation.

Step 2: Start the WhatsApp service

  1. Once activated, you'll see the Service Status panel.
  2. The dashboard shows the service status:
    • Running (green): The service is active and ready.
    • Starting (amber): The service is booting up. Wait 10–30 seconds.
    • Stopped (red): Click Start to launch the service.
  3. Use the Start / Stop / Restart buttons to control the service.

Step 3: Connect your WhatsApp account

  1. Once the service shows Running and the API is reachable, the WhatsApp section unlocks.
  2. Click Connect WhatsApp.
  3. A QR code appears on screen.
  4. Open WhatsApp on your phone → Settings → Linked Devices → Link a Device.
  5. Scan the QR code.
  6. Wait for the connection status to show Connected.

QR code timing

The QR code refreshes every 30 seconds. If it expires, click Refresh QR to generate a new one. Keep your phone nearby during setup.

Step 4: Test the connection

  1. Send a message to your WhatsApp number from a different phone.
  2. The bot should respond using your knowledge base and AI model.
  3. Check the Conversations page in the dashboard to verify the message appeared.

How it works

Once connected, FRENZY.BOT handles WhatsApp messages end-to-end:

  1. Incoming message → WAHA receives it and forwards to FRENZY.BOT via webhook.
  2. AI processing → The bot retrieves relevant knowledge base content and generates a response.
  3. Response sent → The reply is sent back through WhatsApp to the user.
  4. Lead capture → If the user provides contact details, a lead is created automatically.
  5. Handoff → If the user requests a human, the conversation is escalated to your live chat agents.

Channel reply style

WhatsApp responses are automatically adapted for the messaging format:

  • Shorter, more conversational replies (under 2 sentences by default).
  • Friendly tone suited for mobile messaging.
  • You can customize the WhatsApp reply style in Settings → Channels.

Managing the WhatsApp service

Service controls

The dashboard provides direct controls for the WhatsApp service:

Action What it does
Start Launches the service if it's stopped
Stop Gracefully stops the service
Restart Stops and restarts (useful after config changes)
Status Shows current state + API health check

Disconnecting WhatsApp

To disconnect your WhatsApp account without removing the module:

  1. Go to Settings → WhatsApp.
  2. Click Disconnect.
  3. The bot stops receiving WhatsApp messages immediately.
  4. Historical conversations and leads are preserved.

To reconnect later, simply scan a new QR code.

Security

  • The WhatsApp service is firewalled and only accessible from your server.
  • API keys are generated automatically and stored securely.
  • WhatsApp messages are processed on your private server — they never pass through third-party cloud services.

FAQ

Q: The QR code won't scan.

  • Make sure the WAHA service shows Running and the API health check is green.
  • Try refreshing the QR code.
  • Ensure your phone has a stable internet connection.

Q: Messages are not being received.

  • Check that the WhatsApp session status shows Connected.
  • Verify the webhook URL is correctly configured (this is automatic in most setups).
  • Contact your account manager if the issue persists.

Q: Can I use WhatsApp Business API instead?

  • FRENZY.BOT currently uses WAHA (device-based WhatsApp). WhatsApp Business API (cloud-based) support is on the roadmap.

Q: How many conversations can WhatsApp handle?

  • The NOWEB engine is lightweight and handles standard business volumes efficiently. For very high volume (1000+ concurrent chats), contact your account manager for scaling options.

Q: Will I lose my WhatsApp chat history if I restart the service?

  • No. Restarting the service preserves the WhatsApp session. You only need to re-scan the QR code if you explicitly disconnect.
